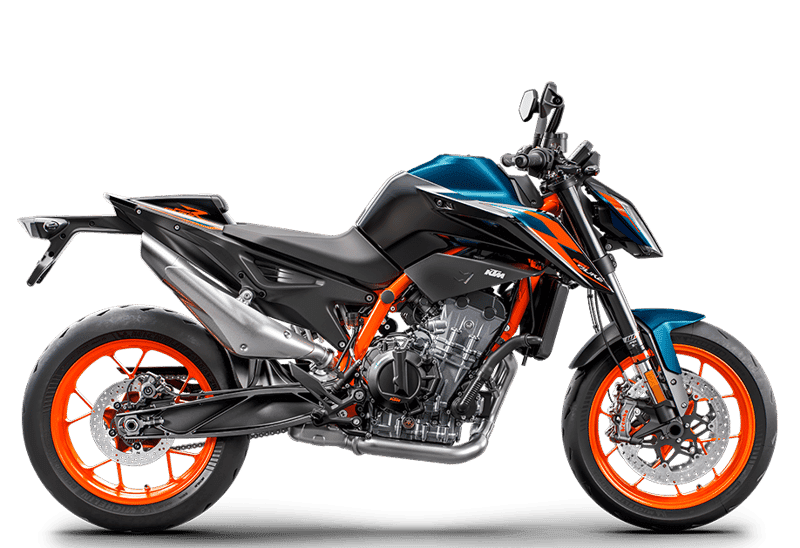

890 Duke R

890 Duke R

KTM

Torque99 Nm / 73 lb-ft
Transmission6-speed
Battery capacity10 Ah
CoolingLiquid cooled with water/oil heat exchanger
Power in KW89 kW / 119.3 hp
StarterElectric starter
Stroke68.8 mm / 2.71 "
Bore90.7 mm / 3.57 "
ClutchPASC™ antihopping clutch, mechanically operated
CO2 emissions110 g/km
Compression ratio13.5
Displacement889 cm³ / 54.26 in³
EMSBosch EMS with RBW
Design2-cylinder, 4-stroke, parallel twin
Fuel consumption4.74 l/100 km / 1.25 gal/100 miles
Fuel-mixture generationDKK Dellorto (Throttle body 46 mm / 1.81 ")
LubricationForced oil lubrication with 2 oil pumps
Tank capacity (approx.)14 l / 3.7 gal
Wheelbase1482 mm / 58.35 "
ABSBosch 9.1 MP (incl. Cornering-ABS and super moto mode)
Front brake disc diameter320 mm / 12.6 "
Rear brake disc diameter240 mm / 9.45 "
Front brake2 x Brembo Stylema Monobloc four piston, radially mounted caliper
Rear brakeBrembo single-piston floating calliper, brake disc
Chain520 X-Ring
Dry weight166 kg / 366 lbs
Wet weight~ 180 kg / 396.8 lbs
Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front suspensionWP APEX 43
Ground clearance206 mm / 8.11 "
HandlebarAluminium Ø 28/22 mm
Rear suspensionWP APEX - Monoshock
Seat height834 mm / 32.83 "
SilencerStainless steel primary and secondary silencer
Steering head angle65.7 °
Rear subframe designAluminium, powder-coated
Suspension travel (front)140 mm / 5.51 "
Suspension travel (rear)150 mm / 5.91 "
WheelsCast aluminium wheels
