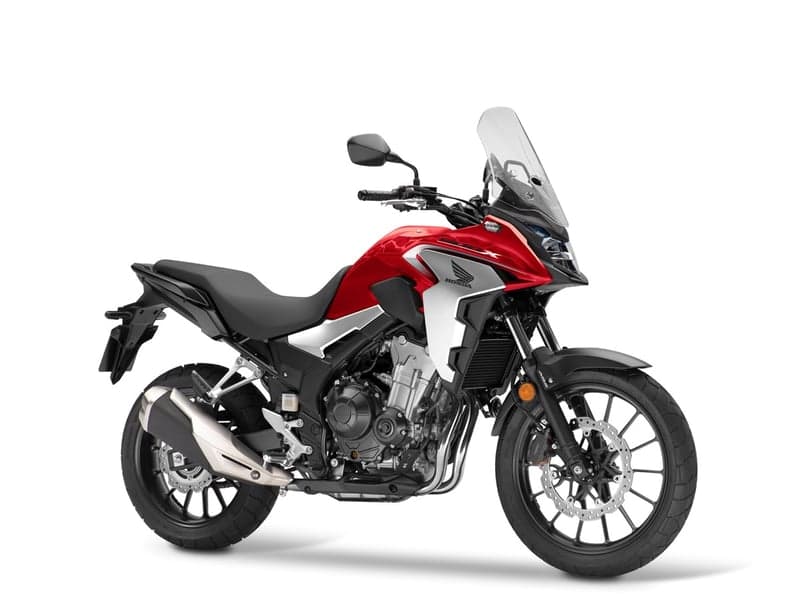

CB500X

CB500X

Honda

Engine typeLiquid-cooled, parallel twin
Engine displacement471cc
Bore and stroke67mm / 2.64" x 66.8mm / 2.63"
Compression ratio10.7:1
Max power output35kW / 47 hp @ 8600rpm
Max torque43Nm / 31.7 lb-ft @ 6500rpm
Oil capacity3.2L / 0.85 gal
CarburationPGM FI
Fuel tank capacity17.7L / 4.67 gal
Fuel consumption27.8 km/litre
Battery capacity12V 7.4AH
Acg output25A/2000rpm
Clutch typeWet multiplate
Transmission type6 speed
Final driveChain
Frame typeSteel diamond
Dimensions2155mm / 84.84" x 825mm / 32.48" x 1410mm / 55.51" (Low screen), 1445mm / 56.89" (High screen)
Wheelbase1445mm / 56.89"
Caster angle27.5 degrees
Trail108mm / 4.25"
Seat height830mm / 32.68"
Ground clearance180mm / 7.09"
Kerb weight197kg / 434.31 lbs
Suspension type frontConventional telescopic, 41mm, pre-load adjustable
Suspension type rearProlink mono with 5 stage preload adjuster, steel square pipe swingarm
Wheels type frontMulti-spoke cast aluminium
Wheels type rearMulti-spoke cast aluminium
Rim size front19 X MT2.5
Rim size rear17 X MT4.5
Tyres front110/80R19M/C (On-off pattern)
Tyres rear160/60R17M/C (On-off pattern)
Abs system type2-Channel
Brakes type frontSingle wavy disk, 310mm / 12.2", 2 piston caliper
Brakes type rearSingle wavy disk, 240mm / 9.45", 1 piston caliper
InstrumentsDigital speedometer, digital bar graph tachometer, dual trip meters, digital fuel level gauge & fuel consumption gauge, digital clock, gear position indicator
Security systemHISS (Honda Intelligent Security System)
HeadlightLow 4.8W, Hi 12W (LED)
