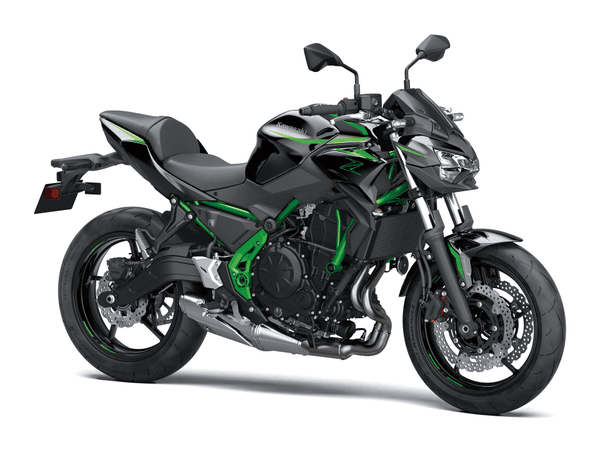

Z650

Z650

Kawasaki

Engine typeLiquid-cooled, 4-stroke, parallel twin
Compression ratio10.8:1
Valve systemDOHC, 8 valves
Bore x stroke83.0 x 60.0 mm / 3.27 x 2.36 in
Displacement649 cm³ / 39.60 in³
Fuel systemFuel injection with dual throttles: 36 mm x 2
LubricationForced lubrication, wet sump
Starting systemElectric
Ignition systemDigital
Maximum power50.2 kW {68 PS} / 8,000 rpm
Maximum torque64.0 N•m {6.5 kgf•m} / 6,700 rpm, 47.2 lb-ft
CO2 emission107 g/km
Fuel consumption4.4 l/100km / 53.46 mpg
CO2 emission 35 kW kit107 g/km
Fuel consumption 35 kW kit4.5 l/100km / 52.27 mpg
Transmission6-speed, return shift
ClutchWet, multi disc
Primary reduction ratio2.095 (88/42)
Gear ratios1st: 2.438 (39/16), 2nd: 1.714 (36/21), 3rd: 1.333 (32/24), 4th: 1.111 (30/27), 5th: 0.966 (28/29), 6th: 0.852 (23/27)
Final driveSealed chain
Final reduction ratio3.067 (46/15)
Frame typeTrellis, high-tensile steel
Trail100 mm / 3.94 in
Wheel travelFront: 125 mm / 4.92 in, Rear: 130 mm / 5.12 in
TyreFront: 120/70 ZR17 M/C (58W), Rear: 160/60 ZR17 M/C (69W)
DimensionsL: 2,055 mm / 80.91 in, W: 765 mm / 30.12 in, H: 1,065 mm / 41.93 in
Steering angleL: 35°, R: 35°
Wheel base1,410 mm / 55.51 in
Ground clearance130 mm / 5.12 in
Fuel capacity15.0 litres / 3.96 gal
Seat height790 mm / 31.10 in
Curb mass188 kg / 414.47 lbs
Front brakeType: Dual semi-floating petal discs, Diameter: Ø 300 mm / 11.81 in, Caliper type: Dual-piston
Rear brakeType: Single petal disc, Diameter: Ø 220 mm / 8.66 in, Caliper type: Single-piston
Front suspensionTelescopic fork, Diameter: Ø 41 mm / 1.61 in
Rear suspensionHorizontal Back-link with spring preload adjustability
