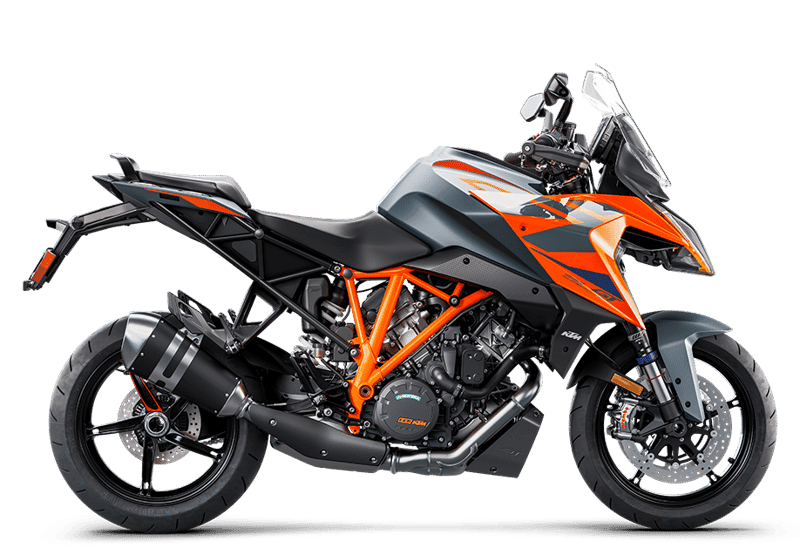

1290 Super Duke GT

1290 Super Duke GT

KTM

Torque141 Nm / 104 lb-ft
Battery capacity12 Ah
CoolingLiquid cooled
Power in kw128.7 kW / 172.6 hp
StarterElectric starter
Stroke71 mm / 2.8 in
Bore108 mm / 4.25 in
ClutchPASC™ slipper clutch, hydraulically actuated
Co2 emissions133 g/km
Compression ratio13.6
Displacement1301 cm³ / 79.4 in³
EmsKeihin EMS with RBW and cruise control, double ignition
Design2-cylinder, 4-stroke, V 75°
Fuel consumption5.7 l/100 km / 41.3 mpg
LubricationForced oil lubrication with 3 oil pumps
Weight without fuel209 kg / 511.4 lbs
Wet weight~ 232 kg / 460.8 lbs
Tank capacity23 l / 6.1 gal
Wheelbase1482 mm / 58.3 in
AbsBosch 9ME Combined ABS (incl. cornering ABS and supermoto mode, disengageable)
Front brake disc diameter320 mm / 12.6 in
Rear brake disc diameter240 mm / 9.4 in
Front brakeBrembo four-piston radial fixed calliper, brake disc
Rear brakeBrembo twin-piston fixed calliper, brake disc
Chain525 X-Ring
Frame designChrome-moly tubular space frame, powder-coated
Front suspensionWP Semi-active suspension USD Ø 48 mm
Ground clearance141 mm / 5.6 in
HandlebarAluminium, tapered Ø 28/22 mm
Rear suspensionWP SAT (semi-active technology) shock absorber
Seat height835 mm / 32.9 in
SilencerStainless steel primary and secondary silencer with two catalytic converters
Steering head angle65.1°
Rear subframe designChrome-molybdenum steel tubular space frame, powder-coated
Suspension travel front125 mm / 4.9 in
Suspension travel rear156 mm / 6.1 in
WheelsCast aluminium wheels
