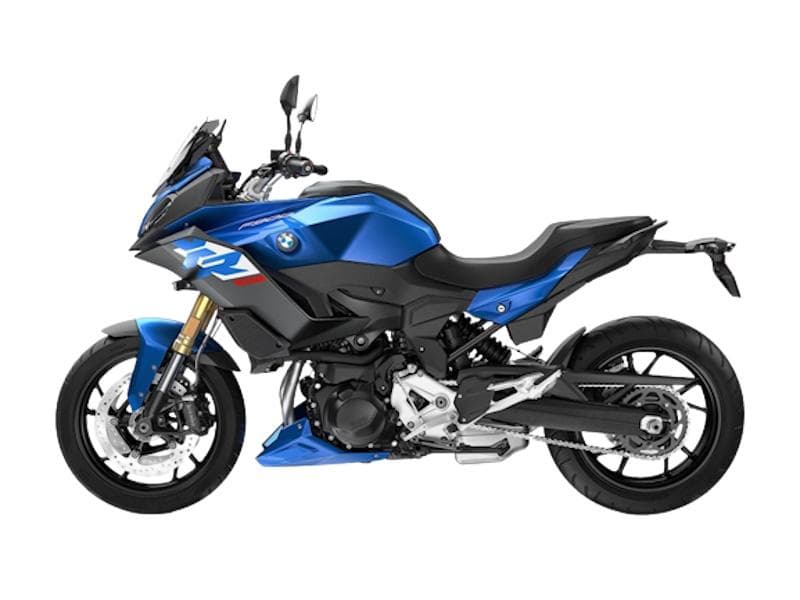

F900XR
BMW
| Type | Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication |
| Bore stroke | 86 mm x 77 mm / 3.39" x 3.03" |
| Capacity | 895 cc |
| Rated output | 77 kW / 105 hp at 8,500 rpm |
| Rated output a2 | 70 kW / 95 hp at 8,000 rpm |
| Oe output reduction | 35 kW / 48 hp at 6,500 rpm |
| Max torque | 92 Nm at 6,500 rpm / 67.9 lb-ft |
| Max torque a2 | 88 Nm at 6,750 rpm / 64.9 lb-ft |
| Oe output reduction torque | 66 Nm at 4,500 rpm / 48.7 lb-ft |
| Compression ratio | 13.1:1 |
| Mixture control | Electronic injection |
| Emission control | Closed-loop 3-way catalytic converter, emission standard EU-5 |
| Maximum speed | Over 200 km/h / 124 mph |
| Maximum speed a2 | Over 200 km/h / 124 mph |
| Oe output reduction speed | 170 km/h / 106 mph |
| Fuel consumption wmtc | 4.2 L/100 km / 56 mpg |
| Co2 emission wmtc | 99 g/km |
| Fuel type | Unleaded super, minimum octane number 95 (RON) |
| Fuel type a2 | Unleaded regular fuel, minimum octane number 91 (RON) |
| Alternator | Permanent magnetic alternator 416 W (nominal power) |
| Battery | 12 V / 12 Ah, maintenance-free |
| Clutch | Multiple-disc wet clutch (anti hopping), mechanically operated |
| Gearbox | Constant mesh 6-speed gearbox integrated in crankcase |
| Drive | Endless O-ring chain with shock damping in rear wheel hub |
| Frame | Bridge-type frame, steel shell construction |
| Front wheel suspension | Upside-down telescopic fork, Ø 43 mm / 1.69" |
| Rear wheel suspension | Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable |
| Suspension travel front rear | 170 mm / 172 mm / 6.7" / 6.8" |
| Oe suspension lowering kit | 150 mm / 152 mm / 5.9" / 6.0" |
| Wheelbase | 1,521 mm / 60.0" |
| Caster | 105.2 mm / 4.1" |
| Steering head angle | 60.5° |
| Wheels | Cast aluminium wheels |
| Rim front | 3.50" x 17" |
| Rim rear | 5.50" x 17" |
| Tyre front | 120/70 ZR 17 |
| Tyre rear | 180/55 ZR 17 |
| Brake front | Dual disc brake, floating brake discs, Ø 320 mm / Ø 12.6", 4-piston radial brake calipers |
| Brake rear | Single disc brake, Ø 265 mm / Ø 10.4", single-piston floating caliper |
| Abs | BMW Motorrad ABS |
| Seat height | 825 mm / 32.5" (OE suspension lowering kit: 775 mm / 30.5", OE low seat: 795 mm / 31.3", OA high seat: 840 mm / 33.1", OA comfort seat: 845 mm / 33.3", OA extra high seat: 870 mm / 34.3") |
| Inner leg curve | 1,840 mm / 72.4" (OE suspension lowering kit: 1,765 mm / 69.5", OE low seat: 1,795 mm / 70.7", OA high seat: 1,870 mm / 73.6", OA comfort seat: 1,880 mm / 74.0", OA extra high seat: 1,900 mm / 74.8") |
| Usable tank volume | 15.5 L / 4.1 gal |
| Reserve | ca. 3.5 L / ca. 1 gal |
| Length | 2,160 mm / 85.0" |
| Height excl mirrors | 1,320-1,420 mm / 52.0" - 55.9" |
| Width excl mirrors | 860 mm / 33.9" |
| Unladen weight road ready | 219 kg / 482 lbs |
| Permitted total weight | 438 kg / 966 lbs |
| Payload standard equipment | 219 kg / 483 lbs |
| Standard equipment | Coloured TFT display with BMW Motorrad Connectivity, LED headlight (low / high beam), LED indicators, ASC, Riding modes Rain/Road, Adjustable hand brake and clutch levers, 12V socket, Windshield adjustment |
| Optional equipment | Headlight Pro incl. adaptive curve light, Riding modes Pro incl. ABS Pro / DTC / MSR / DBC, Dynamic ESA (electronic suspension adjustment), Case holders, Main stand, Keyless ride, Intelligent emergency call, Lowered suspension kit |
| Optional accessories | Soft panniers and touring cases, Luggage rack, Topcase, LED fog lights, Hand protectors, Engine spoiler, Windshield Sport, Alternative seats |
