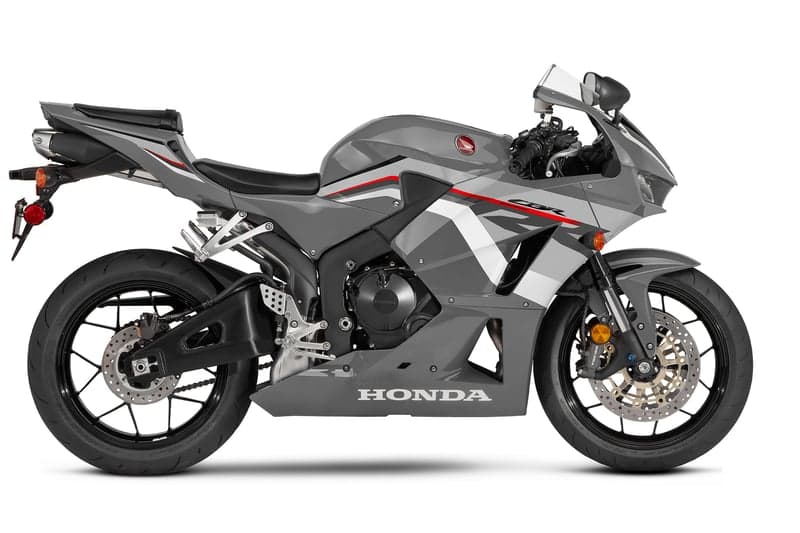

CBR600RR

CBR600RR

Honda

Engine Type599cc liquid-cooled inline four-cylinder four-stroke
Max Power113 hp @14000 rpm
Bore And Stroke67.0mm x 42.5mm / 2.64" x 1.67"
InductionDual Stage Fuel Injection (DSFI) with 40mm throttle bodies / 1.57", Denso 12-hole injectors
Valve TrainDOHC; four valves per cylinder
Compression Ratio12.2:1
TransmissionClose-ratio six-speed
Final Drive#525 O-ring chain; 16T/42T
Front Suspension41mm inverted Big Piston Fork with spring preload, rebound- and compression-damping adjustability; 119.38mm / 4.7" travel
Rear SuspensionUnit Pro-Link® HMAS™ single shock with spring preload, rebound- and compression-damping adjustability; 129.54mm / 5.1" travel
Front BrakeDual radial-mounted full-floating 310mm discs / 12.20" with four-piston calipers
Rear BrakeSingle 220mm disc / 8.66"
Front Tire120/70ZR-17 radial
Rear Tire180/55ZR-17 radial
Rake23.5°
Trail99.06mm / 3.9"
Wheelbase1369.06mm / 53.9"
Seat Height823mm / 32.4"
Curb Weight190.05kg / 419 pounds (Includes all standard equipment, required fluids, and a full tank of fuel)
Fuel Capacity18.17 liters / 4.8 gallons
Model IDCBR600RR
EmissionsMeets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available ColorsDeep Pearl Gray
