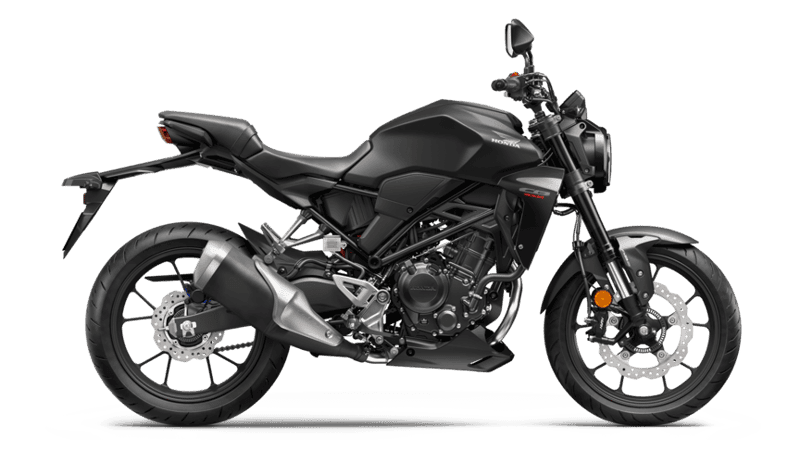

Honda
Engine type | Liquid-cooled 4-valve DOHC single |
Engine displacement | 286cc |
Bore and stroke | 76mm / 2.99" x 63mm / 2.48" |
Compression ratio | 10.7:1 |
Max power output | 22.9kW / 30.7 hp @ 9,000rpm |
Max torque | 27.5Nm / 20.3 lb-ft @ 7,750rpm |
Oil capacity | 1.8L / 0.48 gal |
Carburation | PGM-FI electronic fuel injection |
Fuel tank capacity | 10.0L / 2.64 gal |
Fuel consumption | 30.2 km/litre |
Battery capacity | 12V-7AH |
Clutch type | Wet, multiplate hydraulic clutch |
Transmission type | 6-speed |
Final drive | Chain |
Frame type | Steel diamond |
Dimensions | 2012mm / 79.17" x 802mm / 31.57" x 1052mm / 41.42" |
Wheelbase | 1352mm / 53.23" |
Caster angle | 24.7° |
Trail | 93mm / 3.66" |
Seat height | 799mm / 31.46" |
Ground clearance | 151mm / 5.94" |
Kerb weight | 144kg / 317.47 lbs |
Turning radius | 2.3m / 7.55 ft |
Suspension type front | 41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks, 130mm stroke |
Suspension type rear | Monoshock damper with 5 stage adjustable preload, 107mm travel |
Rim size front | 17 inch |
Rim size rear | 17 inch |
Tyres front | 110/70R17M/C 54H |
Tyres rear | 150/60R17M/C 65H |
Abs system type | 2 channel |
Brakes front | 296mm / 11.65" hubless floating disc with radial-mount Nissin 4-piston caliper |
Brakes rear | 220mm / 8.66" disc with single piston caliper |
Instruments | LCD |
Headlight | LED |
Taillight | LED |
Connectivity | No |
Usb | No |
12v socket | No |
Auto winker cancel | No |
Security system | No |
Cruise control | No |
Additional features | No |
