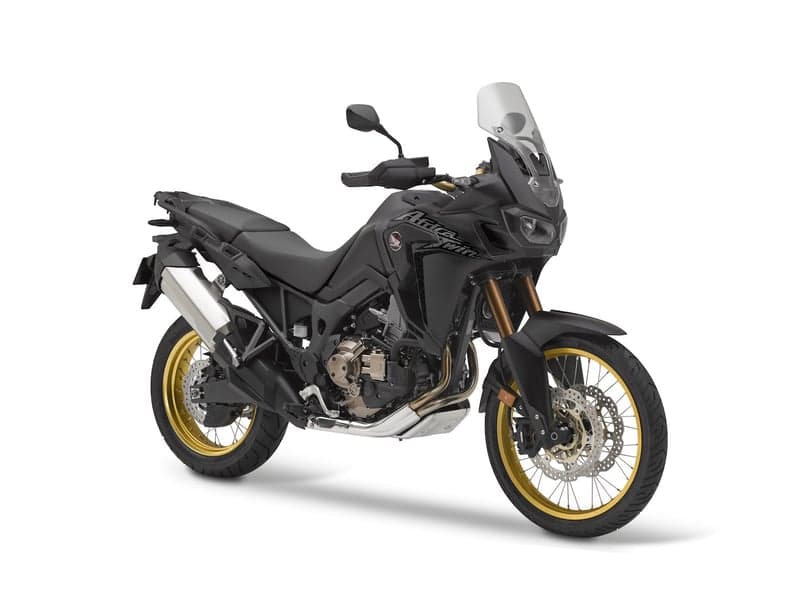

CRF1000L Africa Twin

CRF1000L Africa Twin

Honda

TypeLiquid-cooled 4-stroke 8-valve parallel twin with 270° crank and uni-cam
Displacement998 cm³
Bore Stroke92.0 mm / 3.62" x 75.1 mm / 2.96"
Max Power Output70 kW / 93.9 hp at 7,500 rpm
Max Torque99 Nm / 73.0 lb-ft at 6,000 rpm
Fuel Capacity18.8 litres / 4.97 gal
Fuel Consumption MT21.7 km/l / 51.05 mpg
Fuel Consumption DCT21.8 km/l / 51.29 mpg
Clutch MTWet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutch
Clutch DCT2 Wet multiple clutches
Gearbox Transmission TypeConstant mesh 6-speed MT / 6-speed DCT with on and off-road riding modes
Final DriveO-ring sealed chain
Frame TypeSteel semi-double cradle type with high-tensile strength steel rear subframe
Dimensions LWH2,335 mm / 91.93" x 930 mm / 36.61" x 1,475 mm / 58.07"
Wheelbase1,575 mm / 62.01"
Seat HeightSTD: 870 mm / 34.25", Low Position: 850 mm / 33.46"
Ground Clearance250 mm / 9.84"
Kerb WeightMT: 230 kg / 507.06 lbs, DCT: 240 kg / 529.11 lbs
Turning Radius2.6 m / 8.53 ft
Suspension FrontShowa 45 mm cartridge-type inverted telescopic fork with hydraulic dial-style preload adjuster and DF adjustment, 230 mm / 9.06" stroke, 204 mm / 8.03" axle travel
Suspension RearMonoblock cast aluminium swing arm with Pro-Link, gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustment, 220 mm / 8.66" rear wheel travel, 94 mm / 3.7" axle stroke
Wheels FrontWire spoke with aluminium rim
Wheels RearWire spoke with aluminium rim
Rim Size Front21M/C x MT2.15
Rim Size Rear18M/C x MT4.00
Tyres Front90/90-R21 tube type
Tyres Rear150/70-R18 tube type
ABS System Type2-Channel with rear ABS off switch
Brakes Front310 mm / 12.2" dual wave floating hydraulic disc with aluminium hub, radial fit 4-piston calipers, sintered metal pads
Brakes Rear256 mm / 10.08" wave hydraulic disc with 1-piston caliper, sintered metal pads, Lever-Lock Type Parking Brake System on DCT model with additional slide type 1-piston caliper
InstrumentsRally style negative LCD instrument display with Riding Modes, Speedometer, Tachometer, Fuel, Gear position, ABS, HSTC, Odometer, Trip, and Clock
HeadlightDual LED (1 High/1 Low)
TaillightLED
IndicatorsLED
