Torquepedia

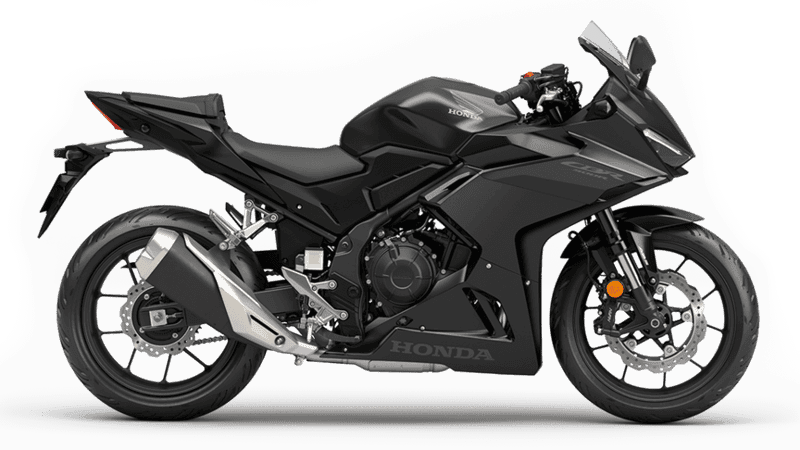

CBR500R

CBR500R

Honda

Bore and stroke67 mm x 66.8 mm / 2.64 in x 2.63 in
CarburationPGM-FI electronic fuel injection
Compression ratio10.7:1
Engine displacement471 cc
Engine typeLiquid-cooled 4-stroke DOHC parallel twin
Max power output35 kW [47 hp] / 8,600 rpm
Max torque43 Nm / 31.7 lb-ft / 6,500 rpm
StarterElectric
Throttle bore34 mm
Co2 emissions80 g/km
Abs system2 channel
Brakes front320 mm / 12.6 in x 5 mm disc with two-piston caliper
Brakes rear240 mm / 9.45 in x 5 mm disc with single-piston caliper
Suspension frontShowa 41 mm SFF-BP USD forks
Suspension rearProlink mono with 5-stage pre-load adjuster, steel square pipe swingarm
Tyre size front120/70ZR-17M/C
Tyre size rear160/60ZR-17M/C
Wheels front17M/C X MT3.5 5Y-Spoke Cast Aluminium
Wheels rear17M/C X MT4.5 5Y-Spoke Cast Aluminium
Battery capacity12 V 7.4 Ah
Caster angle25.5°
Dimensions2,080 mm x 755 mm x 1,145 mm / 81.89 in x 29.72 in x 45.08 in
Frame typeSteel diamond
Fuel tank capacity17.1 L / 4.52 gal
Fuel consumption28.6 km/l / 67.3 mpg [3.5 L/100 km / 0.92 gal/100 miles]
Ground clearance130 mm / 5.12 in
Kerb weight191 kg / 421 lbs
Seat height785 mm / 30.9 in
Trail102 mm / 4.02 in
Wheelbase1,410 mm / 55.5 in
Turning radius2.9 m / 9.51 ft
Noise levelLurban 73.5 dB, Lwot 76.8 dB
ClutchWet multiplate, A.S. clutch
Final driveChain
Gearbox6-speed Manual
HeadlightsLED
Instruments5 in TFT Meter with customisable layout, including Speedometer, Tachometer, Clock, Gear position, Shift UP Indicator
Tail lightLED
ConnectivityHonda RoadSync
Emergency stop signalYes
SecurityHISS
