Torquepedia

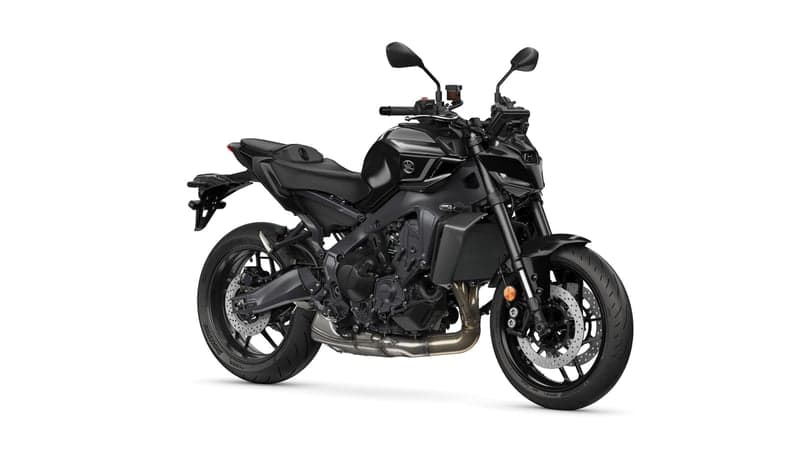

MT-09 Y-AMT

MT-09 Y-AMT

MSRP in US [2024]: 0$
MSRP in EU [2024]: 12,390

Yamaha

Engine type4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder
Displacement890 cc
Bore x stroke78,0 mm / 3.07 " x 62,1 mm / 2.44 "
Compression ratio11,5 : 1
Maximum power87,5 kW / 119.0 PS @ 10,000 rpm
Limited power versionA2 version restricted - 35,0 kW / 47.6 PS @ 6,000 rpm, A2 version unrestricted - 70,0 kW / 95.2 PS @ 9,000 rpm
Maximum torque93,0 Nm / 68.6 lb-ft @ 7,000 rpm
Lubrication systemWet sump
Clutch typeWet, Multiple Disc
Ignition systemTCI
Starter systemElectric
Transmission systemConstant Mesh, 6-speed
Final transmissionChain
Fuel consumption5,0 L/100 km / 47.0 mpg
Co2 emission116 g/km
CarburettorElectronic Fuel Injection
FrameDiamond
Caster angle24º40'
Trail108 mm / 4.25 "
Front suspension systemUpside-down telescopic fork, Ø 41 mm / 1.61 "
Rear suspension systemlink suspension, Swingarm
Front travel130 mm / 5.12 "
Rear travel117 mm / 4.61 "
Front brakeHydraulic dual disc, Ø 298 mm / 11.73 "
Rear brakeHydraulic single disc, Ø 245 mm / 9.65 "
Front tyre120/70ZR17M/C (58W) Tubeless
Rear tyre180/55ZR17M/C (73W) Tubeless
Overall length2.090 mm / 82.28 "
Overall width820 mm / 32.28 "
Overall height1.145 mm / 45.08 "
Seat height825 mm / 32.48 "
Wheel base1.430 mm / 56.30 "
Minimum ground clearance140 mm / 5.51 "
Wet weight196 kg / 432.10 lbs
Fuel tank capacity14 L / 3.7 gal
Oil tank capacity3,50 L / 0.92 gal
Screen typeTFT
Screen size5 inch
Smartphone connectivityMyRide
On screen navigationGarmin StreetCross
