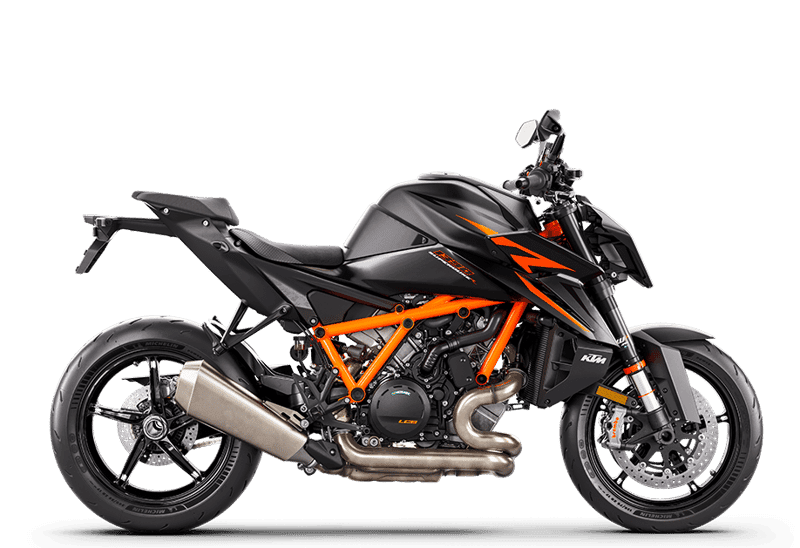

1390 Super Duke R

1390 Super Duke R

KTM

Torque145 Nm / 106.9 lb-ft
Transmission6-speed
Battery capacity11.2 Ah
CoolingLiquid cooled with water/oil heat exchanger
Power in KW140 kW / 187.7 hp
StarterElectric starter
Stroke71 mm / 2.80 "
Bore110 mm / 4.33 "
ClutchPASC (TM) slipper clutch, hydraulically actuated
CO2 emissions139 g/km
Compression ratio13.2
Displacement1350 cm³ / 82.4 in³
EMSKeihin EMS with RBW and cruise control, double ignition
Design2-cylinder, 4-stroke, V 75°
Fuel consumption5.9 l/100 km / 1.56 gal/100 miles
Fuel-mixture generationKeihin EFI (60 mm / 2.36 " throttle valve)
LubricationForced oil lubrication with 3 oil pumps
Weight (without fuel)200.5 kg / 442.1 lbs
Wet weight~ 218 kg / 480.6 lbs
Tank capacity (approx.)17.5 l / 4.62 gal
Wheelbase1491 mm / 58.70 "
ABSBosch 9.3 MP (with cornering ABS and SUPERMOTO ABS)
Front brake disc diameter320 mm / 12.60 "
Rear brake disc diameter240 mm / 9.45 "
Front brake2 x Brembo Stylema Monobloc four piston, radially mounted caliper
Rear brakeBrembo twin-piston fixed calliper, brake disc
Chain525 X-Ring
Frame designChrome-moly tubular space frame, powder-coated
Front suspensionWP APEX 48
Ground clearance149 mm / 5.87 "
HandlebarAluminium, tapered Ø 28/22 mm
Rear suspensionWP APEX - Monoshock
Seat height834 mm / 32.83 "
SilencerStainless steel primary and secondary silencer with two catalytic converters
Steering head angle65.3 °
Rear subframe designCast aluminium / Composite
Suspension travel (front)125 mm / 4.92 "
Suspension travel (rear)140 mm / 5.51 "
WheelsCast aluminium wheels
