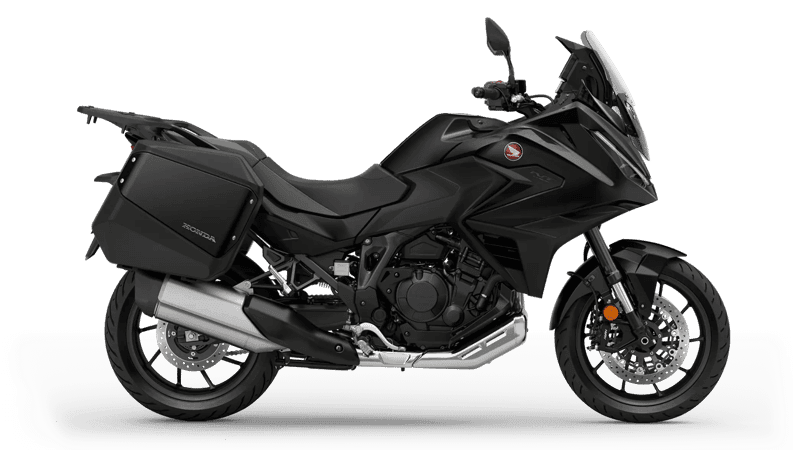

NT1100

NT1100

Honda

NoteData for: NT1100 2025, NT1100 DCT 2025, NT1100 DCT Electronic Suspension 2025; in that order
Engine typeLiquid cooled Four-Stroke, Eight Valve, Parallel Twin with 270° crank and uni cam
Engine displacement1,084 cc
Bore and stroke92 mm / 3.62" x 81.5 mm / 3.21"
Compression ratio10.5
Max power output75.0 kW / 100.6 hp at 7,500 rpm
Max torque112 Nm / 82.6 lb-ft at 5,500 rpm
Noise levelmax. 94 dB, max. 95 dB
Max speed200 km/h / 124.27 mph
Oil capacity4.8 L / 1.27 gal, 5.2 L / 1.37 gal
StarterE-Starter
CarburationPGM-FI Fuel Injection
Fuel tank capacity20.4 L / 5.39 gal
Co2 emissions wmtc116 g/km
Fuel consumption5.0 L/100km / 47 mpg
Battery typeLithium-Ion
Battery capacity12 V 6.0 Ah
Clutch typeWet Multiplate Clutch, 2x Wet Multiplate Clutch
Transmission type6-speed Manual Transmission, 6-speed Dual Clutch Transmission
Final driveChain
Frame typeSemi - Double Cradle (Steel) Frame
Dimensions2,240 mm / 88.19" x 860 mm / 33.86" x 1,340 mm / 52.76"
Wheelbase1,535 mm / 60.43"
Caster angle26.5°
Trail108 mm / 4.25"
Seat height820 mm / 32.28"
Ground clearance175 mm / 6.89"
Kerb weight238 kg / 524.70 lbs + 12 kg / 26.46 lbs Panniers, 248 kg / 546.75 lbs + 12 kg / 26.46 lbs Panniers, 249 kg / 548.95 lbs + 12 kg / 26.46 lbs Panniers
Suspension frontSHOWA 43 mm SFF-BP type inverted telescopic fork with dial-style preload adjust, 150 mm stroke, SHOWA Telescopic inverted fork with 43 mm inner tube, Electric control unit (SHOWA EERA) with compression and rebound damping adjustments, 150 mm stroke
Suspension rearMonoblock aluminium swing arm with Pro-Link, SHOWA gas charged damper, hydraulic dial-style preload adjuster, 150 mm travel, Monoblock aluminium swing arm with Pro-Link, SHOWA gas charged damper, hydraulic remote control preload adjuster and electronic control unit (SHOWA EERA), 150 mm rear wheel travel
Wheels front17M/C X MT3.50 Multi-spoke cast aluminium
Wheels rear17M/C X MT5.50 Multi-spoke cast aluminium
Tyres front120/70ZR17 M/C (58W)
Tyres rear180/55ZR17 M/C (73W)
Abs type2-channel IMU based cornering ABS
Brakes frontRadial mounted four-piston brake calliper, 310 mm floating double disc
Brakes rearSingle piston calliper, 256 mm single disc
Instruments6.5-inch TFT Touch Panel Multi information display & LCD meter
HeadlightLED
DrlYes
TaillightLED
ConnectivityApple Car Play & Android Auto
UsbUSB-A
12v socketYes
Auto winker cancelYes
Quick shifterOptional
Security systemHISS
Cruise controlYes
Riding modeTour, Urban, Rain, User 1, User 2
Hstc with wheelie control3 Level + OFF
Rear lift controlYes
Additional featuresScreen adjustable (167 mm adjustable range)
