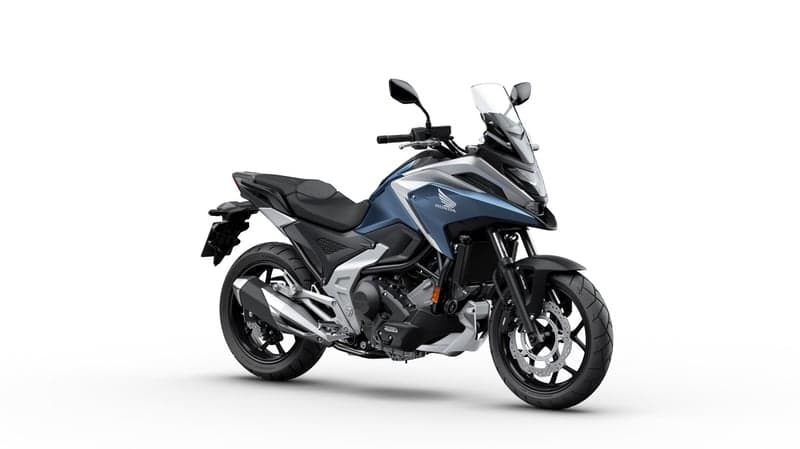

NC750X
Honda
| Engine type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant |
| Engine displacement | 745cc |
| Bore and stroke | 77mm / 3.03" x 80mm / 3.15" |
| Compression ratio | 10.7:1 |
| Max power output | 43.1kW / 57.8 hp @ 6,750rpm |
| Max torque | 69Nm / 50.9 lb-ft @ 4,750rpm |
| Oil capacity | 4L / 1.06 gal |
| Noise level l wot | 77 dB |
| Noise level l urban | 72 dB |
| Carburation | PGM-FI electronic fuel injection |
| Fuel tank capacity | 14.1L / 3.72 gal |
| Fuel consumption mt | 28.3 km/l |
| Fuel consumption dct | 28.3 km/l |
| Starter | Electric |
| Battery capacity | 12V/11AH |
| Clutch type mt | Wet multiplate clutch |
| Clutch type dct | Wet multiplate hydraulic 2-clutch |
| Transmission type mt | 6-speed Manual Transmission |
| Transmission type dct | 6-speed Dual Clutch Transmission |
| Final drive | Chain |
| Frame type | Diamond; steel pipe |
| Dimensions | 2210mm / 87.01" x 846mm / 33.31" x 1330mm / 52.36" |
| Wheelbase mt | 1535mm / 60.43" |
| Wheelbase dct | 1535mm / 60.43" |
| Caster angle | 27° |
| Trail | 110mm / 4.33" |
| Seat height | 800mm / 31.50" |
| Ground clearance | 145mm / 5.71" |
| Kerb weight mt | 214kg / 471.79 lbs |
| Kerb weight dct | 224kg / 493.84 lbs |
| Suspension type front | 41mm telescopic fork, 120mm stroke |
| Suspension type rear | Monoshock damper, Pro-Link swingarm, 120mm travel |
| Wheels type front | Multi-spoke cast aluminium |
| Wheels type rear | Multi-spoke cast aluminium |
| Rim size front | 17M/C x MT3.50 |
| Rim size rear | 17M/C x MT4.50 |
| Tyres front | 120/70-ZR17M/C (58W) |
| Tyres rear | 160/60-ZR17M/C (69W) |
| Abs system type | 2-channel ABS |
| Brakes type front | 320mm / 12.6" single wavy hydraulic disc with 2-piston caliper and sintered metal pads |
| Brakes type rear | 240mm / 9.45" single wavy hydraulic disc with single-piston caliper and resin mold pads |
| Instruments | Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption, coolant temperature warning light |
| Security system | HISS |
| Headlight | LED |
| Taillight | LED |
