Torquepedia

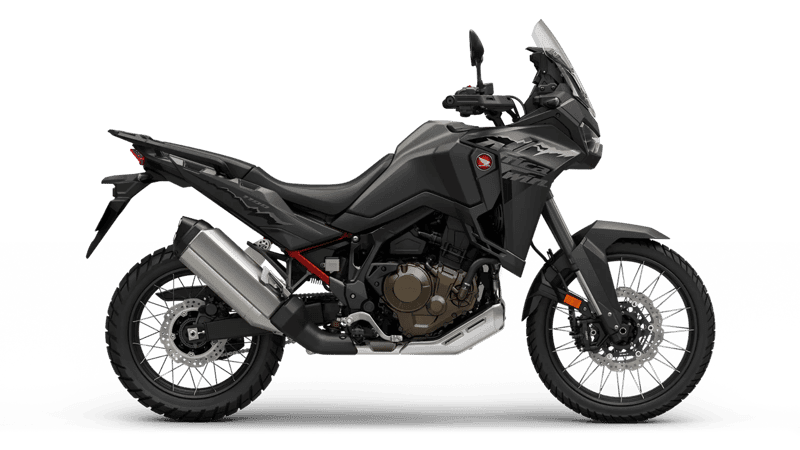

CRF1100L Africa Twin

CRF1100L Africa Twin

MSRP in US [2024]: 14,799$
MSRP in EU [2024]: 14,990

Honda

TypeLiquid-cooled OHC 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
Displacement1084 cc
Bore x Stroke92 mm / 3.62" x 81.5 mm / 3.21"
Compression Ratio10.5:1
Max Power Output75 kW / 100.5 hp at 7,500 rpm
Max Torque112 Nm / 82.6 lb-ft at 5,500 rpm
Noise LevelMT: Lurban 75.1 dB, Lwot 80.1 dB, DCT: Lurban 75.0 dB, Lwot 79.9 dB
Oil CapacityMT: 4.8 l / 1.27 gal, DCT: 5.2 l / 1.37 gal
CarburationPGM-FI
Fuel Tank Capacity18.8 l / 4.97 gal
CO2 Emissions114 g/km
Fuel ConsumptionMT: 20.5 km/l [4.9 l/100km] / 48.2 mpg, DCT: 20.5 km/l [4.9 l/100km] / 48.2 mpg
Battery Capacity12V-6Ah Li-ion (20Hr)
Clutch TypeMT: Wet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutch, DCT: 2 wet, multiplate clutches with coil springs
Transmission Type6 Speed Manual, 6 Speed DCT
Final DriveO-ring sealed chain
Frame TypeSemi Double Cradle
Dimensions LWH2330 mm / 91.73" x 960 mm / 37.8" x 1485 mm / 58.46"
Wheelbase1575 mm / 62.01"
Caster Angle27.5°
Trail113 mm / 4.45"
Seat Height850 mm / 33.46", 870 mm / 34.25", Low Seat option: 825 mm / 32.48", Comfort Seat option: 885 mm / 34.84"
Ground Clearance250 mm / 9.84"
Kerb WeightMT: 231 kg / 509.27 lbs, DCT: 242 kg / 533.52 lbs, ES MT: 233 kg / 513.67 lbs, ES DCT: 244 kg / 537.93 lbs
Suspension FrontShowa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjustments, 230 mm / 9.06" stroke
Suspension Front ESSHOWA Telescopic inverted fork with 45mm inner tube, electronic control unit (SHOWA EERATM), compression and rebound damping adjustments, 230 mm / 9.06" stroke
Suspension RearMonoblock aluminium swing arm with Pro-Link, SHOWA gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm / 8.66" rear wheel travel
Suspension Rear ESMonoblock aluminium swing arm with Pro-Link, SHOWA gas-charged damper, hydraulic remote control preload adjuster and electronic control unit (SHOWA EERATM), compression and rebound damping adjustments, 220 mm / 8.66" rear wheel travel
Wheels Front21M/C x MT2.15 wire spoke with aluminium rim
Wheels Rear18M/C x MT4.00 wire spoke with aluminium rim
Tyres Front90/90-21M/C 54H (tubeless type) Metzler Karoo Street
Tyres Rear150/70R18M/C 70H (tubeless type) Metzler Karoo Street
ABS System Type2 channel with IMU, Selectable ABS MODE with ON road and OFF road setting
Brakes Front310 mm / 12.2" dual wave floating hydraulic disc with aluminium hub, radial fit 4-piston calipers, sintered metal pads
Brakes Rear256 mm / 10.08" wave hydraulic disc with single piston caliper, sintered metal pads
InstrumentsLCD Meter, TFT 6.5 inch touch panel multi information display
HeadlightLED
TaillightLED
ConnectivityBluetooth, Apple CarPlay, Android Auto (wired)
USBYes
12V SocketYes
Auto Winker CancelYes
QuickshifterOptional (MT only)
Security SystemImmobiliser
Cruise ControlYes
Cornering LightsNo
Additional FeaturesEmergency stop signal, 6 axis IMU, HSTC, Wheelie control
