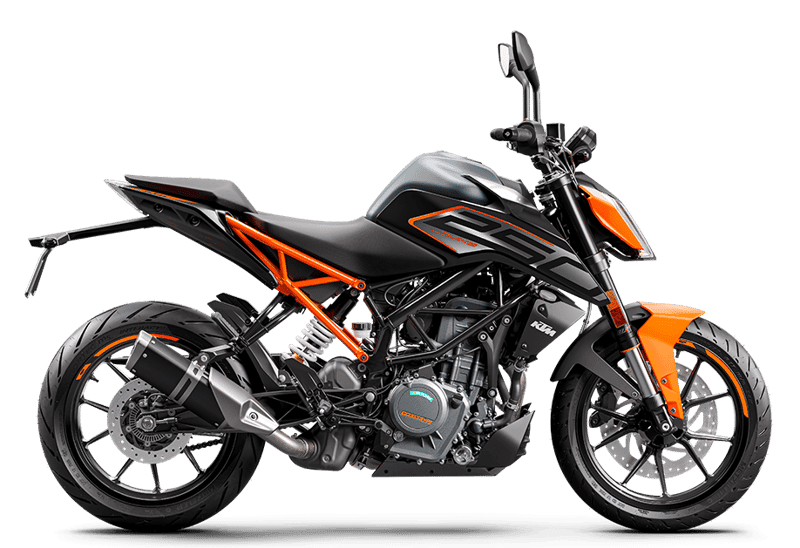

250 Duke

250 Duke

KTM

Torque24 Nm / 17.7 lb-ft
Transmission6-speed
Battery capacity8 Ah
CoolingLiquid cooled
Power in KW22 kW / 29.5 hp
StarterElectric starter
Stroke61.1 mm / 2.41 "
Bore72 mm / 2.83 "
ClutchPASC™ antihopping clutch, mechanically operated
Compression ratio12.5
Displacement249 cm³ / 15.2 in³
EMSBosch EMS
Design1-cylinder, 4-stroke engine
Fuel-mixture generationBosch EFI (throttle valve 38 mm / 1.5 ")
LubricationWet sump
Tank capacity (approx.)13.4 l / 3.54 gal
Wheelbase1357 mm / 53.43 "
Front brake disc diameter300 mm / 11.81 "
Rear brake disc diameter230 mm / 9.06 "
Front brakeFour-piston radial fixed calliper, brake disc
Rear brakeSingle-piston floating calliper, brake disc
Chain520 X-Ring
Dry weight146 kg / 321.9 lbs
Wet weight~ 159.4 kg / 351.4 lbs
Frame designSteel trellis frame, powder coated
Front suspensionWP APEX 43
Ground clearance185 mm / 7.28 "
HandlebarSteel, tapered Ø 26/22 mm
Rear suspensionWP APEX - Monoshock
Seat height830 mm / 32.68 "
SilencerStainless steel primary and aluminium secondary silencer
Steering head angle65 °
Rear subframe designSteel trellis frame, powder coated
Suspension travel (front)142 mm / 5.59 "
Suspension travel (rear)150 mm / 5.91 "
WheelsCast aluminium wheels
