Torquepedia

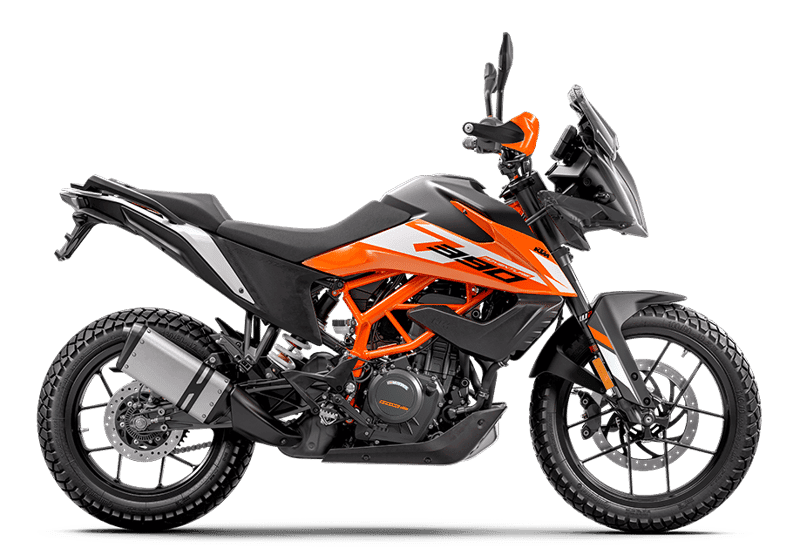

390 Adventure

390 Adventure

KTM

Torque37 Nm / 27.3 lb-ft
Transmission6-speed
CoolingLiquid cooled
Power32 kW / 42.9 HP
StarterElectric starter
Stroke60 mm / 2.36 in
Bore89 mm / 3.5 in
ClutchPASC™ antihopping clutch, mechanically operated
Co2 emissions78 g/km
Compression ratio12.6:1
Displacement373.2 cm³ / 22.8 in³
EmsBosch EMS with RBW
Design1-cylinder, 4-stroke engine
Fuel consumption3.37 L/100 km / 0.89 gal/100 mi
Fuel mixture generationBosch EFI (throttle valve 46 mm)
LubricationWet sump
Weight without fuel159 kg / 350.5 lbs
Tank capacity14.5 L / 3.83 gal
Wet weight~ 173.5 kg / 382.5 lbs
Wheelbase1430 mm / 56.3 in
AbsBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
Front brake disc diameter320 mm / 12.6 in
Rear brake disc diameter230 mm / 9.1 in
Front brakeFour-piston radial fixed caliper
Rear brakeSingle-piston floating caliper, brake disc
Chain520 X-Ring
Dry weight161 kg / 354.9 lbs
Frame designSteel trellis frame, powder coated
Front suspensionWP APEX 43
HandlebarAluminium, tapered Ø 28/22 mm
Rear suspensionWP APEX - Monoshock
Seat height855 mm / 33.7 in
SilencerStainless steel primary and secondary silencer
Steering head angle63.5°
Rear subframe designSteel trellis frame, powder coated
Suspension travel front170 mm / 6.7 in
Suspension travel rear177 mm / 7 in
WheelsCast aluminium wheels
