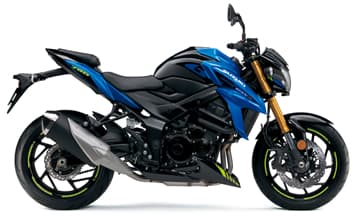

Suzuki
Overall length | 2,125 mm (83.7 in) |
Overall width | 785 mm (30.9 in) |
Overall height | 1,055 mm (41.5 in) |
Wheelbase | 1,455 mm (57.3 in) |
Ground clearance | 135 mm (5.3 in) |
Seat height | 820 mm (32.3 in) |
Curb mass | 213 kg (469 lbs) |
Engine type | 4-stroke, 4-cylinder, liquid-cooled, DOHC |
Bore stroke | 72.0 mm × 46.0 mm (2.8 in × 1.8 in) |
Displacement | 749 cm3 (45.7 cu.in) |
Compression ratio | 12.3 : 1 |
Fuel system | Fuel injection |
Starter system | Electric |
Lubrication system | Wet sump |
Transmission | 6-speed constant mesh |
Primary reduction ratio | 1.857 (78 / 42) |
Final reduction ratio | 2.529 (43 / 17) |
Front suspension | Inverted telescopic, coil spring oil damped |
Rear suspension | Link type, coil spring, oil damped |
Rake trail | 25° / 100 mm (3.9 in) |
Front brake | Disc, twin |
Rear brake | Disc |
Front tire size | 120/70ZR17M/C (58W), tubeless |
Rear tire size | 180/55ZR17M/C (73W), tubeless |
Ignition system | Electronic ignition (Transistorized) |
Fuel tank capacity | 16.0 L (4.2/3.5 US/Imp gal) |
Oil capacity overhaul | 3.9 L (4.1/3.4 US/lmp qt) |
