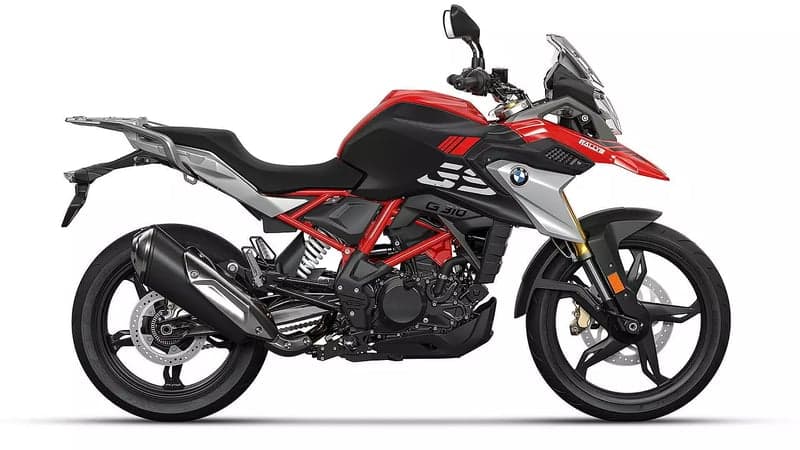

G310GS

G310GS

BMW

TypeWater-cooled, single-cylinder 4-stroke engine, four valves, two overhead camshafts and cam followers, wet sump lubrication
Bore stroke80 mm x 62.1 mm
Capacity313 cc
Rated output25 kW (34 hp) at 9,250 rpm
Max torque28 Nm at 7,500 rpm / 20 lbs-ft at 7,500 rpm
Compression ratio10.9 : 1
Mixture controlElectronic fuel injection
Emission control EUClosed-loop 3-way catalytic converter, emission standard EU-5
Maximum speed143 kmh / 88 mph
Fuel consumption per 100 km based on WMTC3.5 l
Co2 emission based on WMTC80 g/km
Fuel typeUnleaded regular, minimum octane number 91 (RON)
AlternatorThree-phase alternator 308 W
Battery12 V / 8 Ah, maintenance-free
ClutchMultiplate clutch in oil bath, anti-hopping (slipper) clutch, with self-reinforcement
GearboxConstant mesh 6-speed gearbox integrated in crankcase
DriveEndless X-ring chain with shock damping in rear wheel hub
FrameTubular space frame
Front wheel suspensionUpside down fork, 41 mm
Rear wheel suspensionCast aluminium dual swing arm, central spring strut, spring pre-load adjustable
Suspension travel front rear180 mm | 180 mm / 7.1" / 7.1"
Wheelbase1,420 mm / 55.9"
Castor98 mm / 3.9"
Steering head angle63.3°
WheelsCast aluminium wheels
Rim front2.50 x 19"
Rim rear4.00 x 17"
Tyre front110/80 R19
Tyre rear150/70 R17
Brake frontSingle disc, diameter 300 mm / 11.8", 4-piston fixed caliper, radially bolted
Brake rearSingle disc, diameter 240 mm / 9.5", single-piston floating caliper
AbsBMW Motorrad ABS
Seat height835 mm (OA low seat: 820 mm, OE high seat: 850 mm) / 32.8" (OE low seat: 32.3", OE high seat: 33.4"
Inner leg curve1,870 mm (OA low seat: 1,840 mm, OE high seat: 1,900 mm) / 73.6" (OE low seat: 72.4", OE high seat: 74.8")
Usable tank volume11.5 l / 3.0 gal
Reserveapprox. 1 l / approx. 0.25 gal
Length2,075 mm / 81.7"
Height excl mirrors1,230 mm / 48.8"
Width excl mirrors880 mm / 34.6"
Unladen weight175 kg / 386 lbs
Permitted total weight345 kg / 760 lbs
Payload with standard equipment170 kg / 374 lbs
Standard equipmentBMW Motorrad ABS, Electric throttle, Stainless steel exhaust system, 100% LED headlights incl. turn indicator and rear light, Adjustable brake and clutch levers, Luggage carrier
Optional accessoriesLow seat, High seat, Topcase light, Topcase 30 l, Heated grips, 12 V and USB socket
