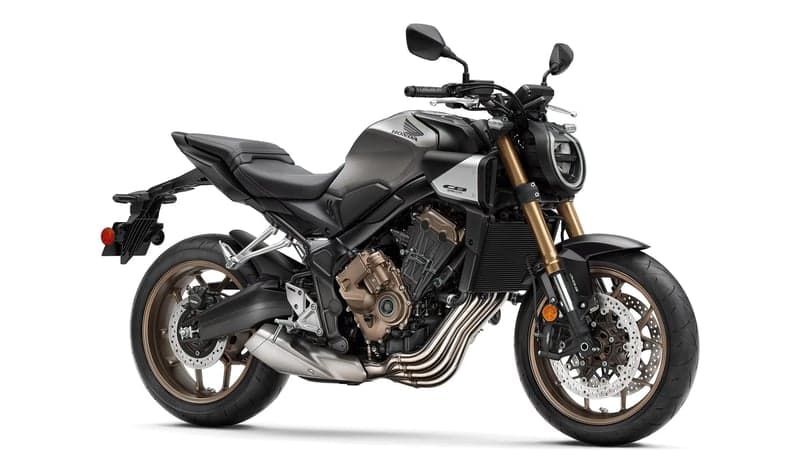

CB650R

CB650R

Honda

Engine typeLiquid-cooled 4-stroke 16-valve DOHC inline-4 cylinder
Engine displacement649cc
Engine bore stroke67mm / 2.64" x 46mm / 1.81"
Engine compression ratio11.6:1
Engine max power output70kW / 93.9 hp at 12,000rpm (35kW / 46.9 hp kit available)
Engine max torque63Nm / 46.5 lb-ft at 9,500rpm (49Nm / 36.1 lb-ft with 35kW kit)
Engine oil capacity2.7L / 0.71 gal
Engine noise levelLwot 78.8dB, Lurban 74.2dB
Fuel system carburationPGM-FI electronic fuel injection
Fuel system tank capacity15.4L / 4.07 gal
Fuel system co2 emissions wmtc113g/km
Fuel system fuel consumption4.9L/100km (20.4km/l)
Electrical battery capacityYTZ10/FTZ10S 9.1Ah
Drivetrain clutch typeMT - Wet multiplate, A.S.clutch, E-Clutch - Wet multiplate, E-Clutch
Drivetrain transmission type6-speed
Drivetrain final driveChain
Frame typeSteel diamond
Chassis dimensions2120mm / 83.46" x 780mm / 30.71" x 1075mm / 42.32"
Chassis wheelbase1450mm / 57.09"
Chassis caster angle25.5°
Chassis trail100mm / 3.94"
Chassis seat height810mm / 31.89"
Chassis ground clearance150mm / 5.91"
Chassis kerb weight205kg / 451.9 lbs (207kg / 456.4 lbs E-Clutch)
Chassis turning radius2.8m
Suspension type front41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks
Suspension type rearMonoshock damper with 10 stage adjustable preload, 43.5mm stroke
Wheels rim size front17M/C x MT3.50 Hollow section 5 spoke cast aluminium
Wheels rim size rear17M/C x MT5.50 Hollow section 5 spoke cast aluminium
Wheels tyres front120/70ZR17 M/C (58W)
Wheels tyres rear180/55ZR17 M/C (73W)
Brakes abs system type2 channel
Brakes front310mm x 4.5mm double disc with four piston caliper
Brakes rear240mm x 5mm disc with single piston caliper
Instruments instruments5-inch full colour TFT screen includes Honda RoadSync, digital speedometer, digital bar graph tachometer, dual trip meter, digital bar graph fuel gauge, gear position and upshift indicator, digital clock
Instruments headlightLED
Instruments taillightLED
Instruments connectivityHonda RoadSync
Instruments usbNo
Instruments 12v socketOptional
Instruments auto winker cancelNo
Instruments quickshifterOptional only for MT
Instruments security systemHISS
Instruments cruise controlNo
Instruments additional featuresHSTC
