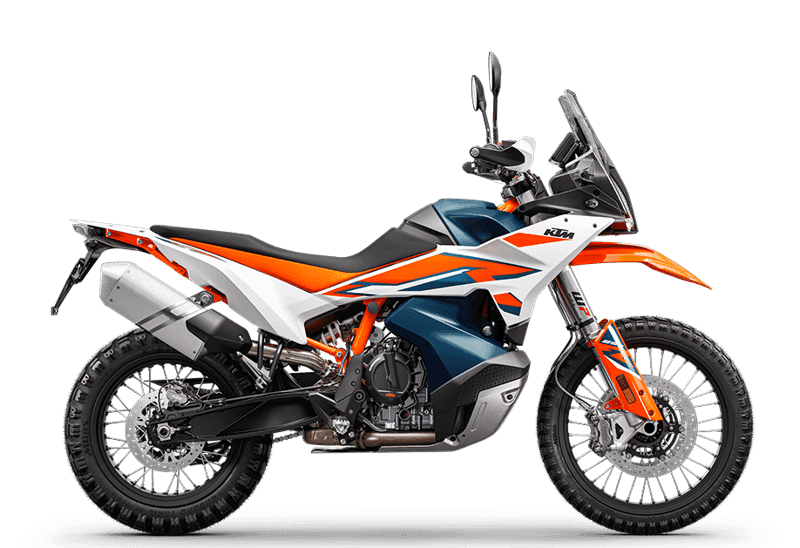

890 Adventure R

890 Adventure R

KTM

Torque100 Nm / 73.7 lb-ft
Transmission6-speed
CoolingLiquid cooled
Power in kw77 kW / 103.3 hp
StarterElectric starter
Stroke68.8 mm / 2.71 in
Bore90.7 mm / 3.57 in
ClutchPASC™ antihopping clutch, mechanically operated
Co2 emissions103 g/km
Displacement889 cm³ / 54.2 in³
EmsBosch EMS with RBW
Design2-cylinder, 4-stroke, parallel twin
Fuel consumption4.4 l/100 km / 53.5 mpg
Fuel mixture generationDKK Dellorto (Throttle body 46mm)
LubricationForced oil lubrication with 2 oil pumps
Weight without fuel200 kg / 441 lbs
Wet weight220 kg / 485 lbs
Tank capacity20 l / 5.28 gal
Wheelbase1528 mm / 60.2 in
Front brake disc diameter320 mm / 12.6 in
Rear brake disc diameter260 mm / 10.2 in
Front brakeDisc brake
Rear brakeDisc brake
Chain520 X-Ring
Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front suspensionWP XPLOR-USD, Ø 48 mm
Ground clearance263 mm / 10.4 in
HandlebarAluminium, tapered Ø 28/22 mm
Rear suspensionWP Xplor PDS shock absorber
Seat height880 mm / 34.6 in
SilencerStainless steel primary and secondary silencer
Steering head angle63.7°
Rear subframe designChrome-molybdenum steel tubular space frame, powder-coated
Suspension travel front240 mm / 9.4 in
Suspension travel rear240 mm / 9.4 in
WheelsSpoked wheels with aluminium rims
