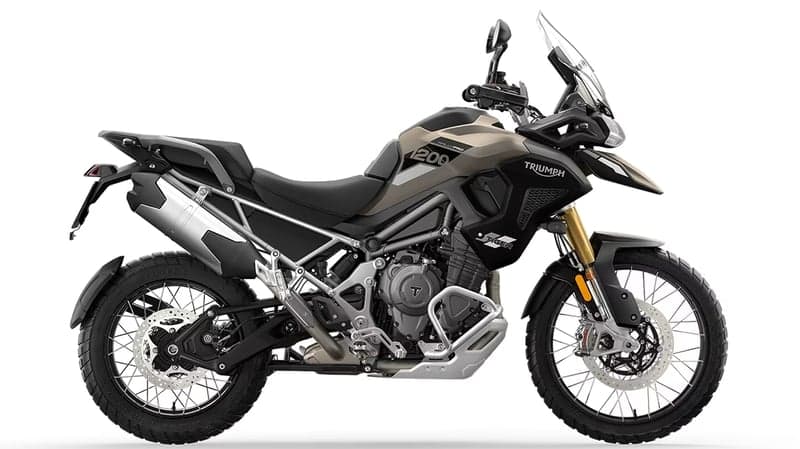

Tiger 1200 Rally Pro

Tiger 1200 Rally Pro

MSRP in US [2024]: 22,995$
MSRP in EU [2024]: 21,545

Triumph

TypeLiquid-cooled, 12 valve, DOHC, inline 3-cylinder
Capacity1160 cc / 70.8 cu in
Bore3.54 in / 90 mm
Stroke2.38 in / 60.5 mm
Compression13.2:1
Max Power EC147 HP / 110.4 kW @ 9,000 rpm
Max Torque EC130 Nm / 95 lb-ft @ 7,000 rpm
SystemMultipoint sequential electronic fuel injection with electronic throttle control
ExhaustStainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Final DriveShaft drive
ClutchHydraulic, wet, multi-plate, slip and assist
Gearbox6 speed
FrameTubular steel frame, forged aluminium outriggers, fabricated bolt-on aluminium rear subframe
SwingarmTwin sided 'Tri-Link' aluminium swingarm, twin aluminium torque arms
Front WheelSpoked (Tubeless), 21 x 2.15 in
Rear WheelSpoked (Tubeless), 18 x 4.25 in
Front TireMetzeler Karoo Street, 90/90-21 M/C 54V TL
Rear TireMetzeler Karoo Street, 150/70R18 M/C 70V TL
Front SuspensionShowa 49 mm, semi-active damping USD forks, 8.66 in travel
Rear Suspension220 mm wheel travel, Showa semi-active damping monoshock, automatic electronic preload adjustment, new active preload reduction feature, up to 0.78 in lowering at standstill depending on load
Front BrakesBrembo M4.30 Stylema monoblock radial calipers, OC-ABS, twin 320 mm floating discs, Magura HC1 span adjustable radial master cylinder with separate reservoir
Rear BrakesBrembo single piston caliper, OC-ABS, single 282 mm disc, rear master cylinder with remote reservoir
Width Handlebars33.42 in / 84.88 cm
Handguards38.66 in / 98.23 cm
Height Without Mirror Low Screen58.54 in / 148.69 cm
Height Without Mirror High Screen60.9 in / 154.68 cm
Seat HeightAdjustable 34.44 in / 87.49 cm, 35.23 in / 89.49 cm
Wheelbase61.41 in / 156.03 cm
Rake23.7 º
Trail4.4 in / 111.76 mm
Tank Capacity5.28 US gal / 20 L
Wet Weight548.9 lbs / 249.01 kg
Service Interval10,000 miles / 16,000 km, 12 months, whichever comes first
