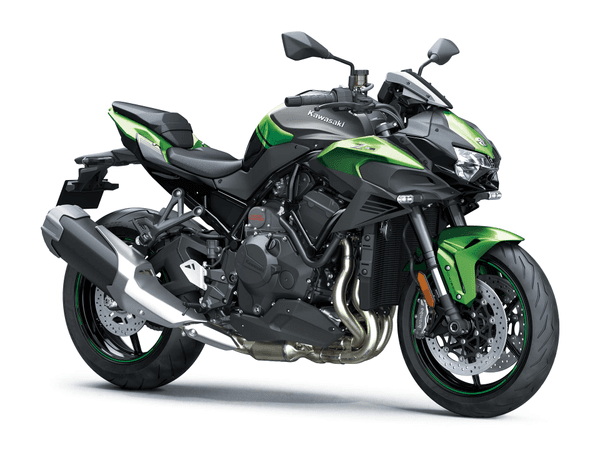

Z H2

Z H2

Kawasaki

Engine typeLiquid-cooled, 4-stroke, in-line four with Supercharger
Compression ratio11.2:1
Valve systemDOHC, 16 valves
Bore x stroke76.0 x 55.0 mm / 2.99 x 2.17 in
Displacement998 cm³ / 60.90 in³
Fuel systemFuel injection: 40 mm x 4
LubricationForced lubrication, wet sump
Starting systemElectric
Ignition systemDigital
Maximum power147.1 kW {200 PS} / 11,000 rpm
Maximum torque137.0 N•m {14.0 kgf•m} / 8,500 rpm, 101.1 lb-ft
CO2 emission134 g/km
Fuel consumption6.0 l/100km / 39.2 mpg
Transmission6-speed, return shift
ClutchWet, multi disc
Primary reduction ratio1.480 (74/50)
Gear ratios1st: 3.077 (40/13), 2nd: 2.471 (42/17), 3rd: 2.045 (45/22), 4th: 1.727 (38/22), 5th: 1.524 (32/21), 6th: 1.348 (31/23)
Final driveSealed chain
Final reduction ratio2.556 (46/18)
Frame typeTrellis, high-tensile steel
Trail104 mm / 4.09 in
Wheel travelFront: 120 mm / 4.72 in, Rear: 134 mm / 5.28 in
TyreFront: 120/70 ZR17 M/C (58W), Rear: 190/55 ZR17 M/C (75W)
DimensionsL: 2,085 mm / 82.09 in, W: 810 mm / 31.89 in, H: 1,130 mm / 44.49 in
Steering angleL: 29°, R: 29°
Wheel base1,455 mm / 57.28 in
Ground clearance140 mm / 5.51 in
Fuel capacity19.0 litres / 5.02 gal
Seat height830 mm / 32.68 in
Curb mass239 kg / 527 lbs
Front brakeType: Dual semi-floating discs, Diameter: Ø 320 mm / 12.60 in, Caliper type: Brembo radial-mount, M4.32 monobloc, opposed 4-piston
Rear brakeType: Single disc, Diameter: Ø 260 mm / 10.24 in, Caliper type: Single-piston
Front suspensionInverted Separate Function fork (SFF-BP) with adjustable compression and rebound damping, and spring preload adjustability
Rear suspensionUni-Trak, gas-charged shock, adjustable rebound damping, and spring preload adjustability
