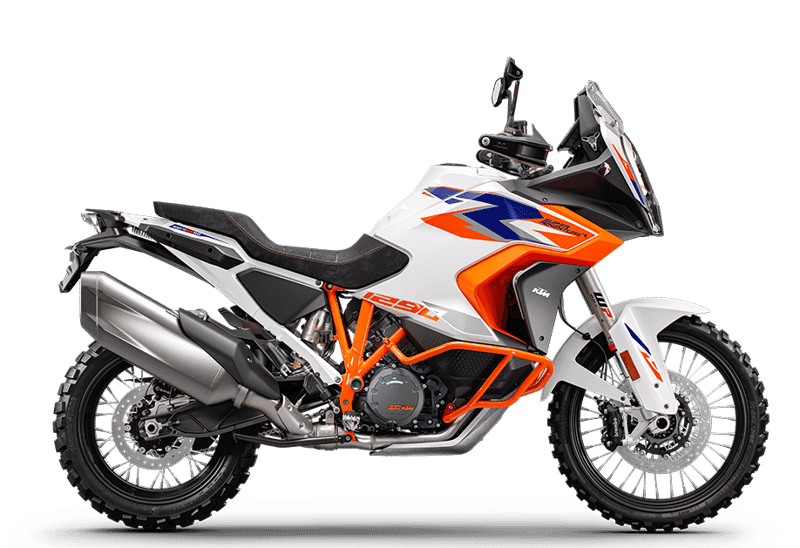

1290 Super Adventure R

1290 Super Adventure R

KTM

Torque138 Nm / 101.7 lb-ft
Transmission6-speed
CoolingLiquid cooled
Power in kw118 kW / 158.3 hp
StarterElectric starter
Stroke71 mm / 2.8 in
Bore108 mm / 4.25 in
ClutchPASC™ slipper clutch, hydraulically actuated
Co2 emissions134 g/km
Compression ratio13.1
Displacement1301 cm³ / 79.4 in³
EmsKeihin EMS with RBW and cruise control, double ignition
Design2-cylinder, 4-stroke, V 75°
Fuel consumption5.7 l/100 km / 41.3 mpg
Fuel mixture generationKeihin EFI (throttle body 52 mm)
LubricationForced oil lubrication with 3 oil pumps
Weight without fuel228 kg / 502.7 lbs
Wet weight~ 251 kg / 553 lbs
Tank capacity23 l / 6.1 gal
Wheelbase1577 mm / 62.1 in
AbsBosch 10.3ME Combined-ABS (incl. Cornering-ABS and offroad mode)
Front brake disc diameter320 mm / 12.6 in
Rear brake disc diameter267 mm / 10.5 in
Chain525 X-Ring
Dry weight221 kg / 487.2 lbs
Frame designChrome-moly tubular space frame, powder-coated
Front suspensionWP XPLOR-USD, Ø 48 mm
Ground clearance242 mm / 9.5 in
HandlebarAluminium, tapered Ø 28/22 mm
Rear suspensionWP Xplor PDS shock absorber
Seat height880 mm / 34.6 in
SilencerStainless steel primary and secondary silencer with two catalytic converters
Steering head angle64.7°
Rear subframe designAluminium, powder-coated
Suspension travel front220 mm / 8.7 in
Suspension travel rear220 mm / 8.7 in
WheelsSpoked wheels with aluminium rims
