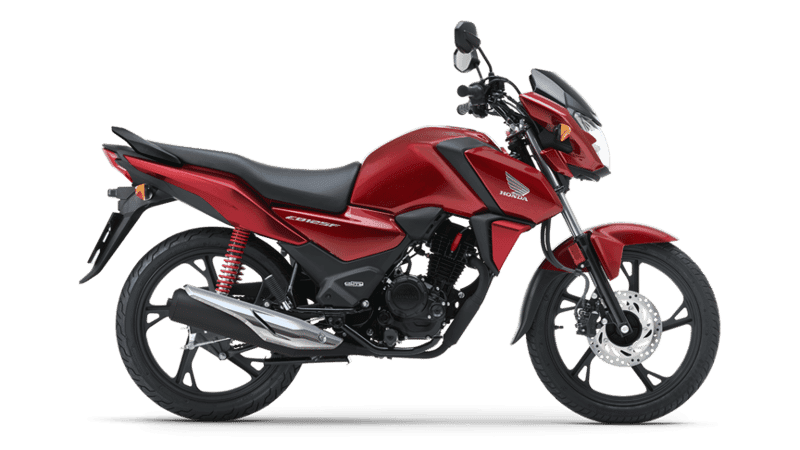

CB125F

CB125F

Honda

Engine typeLiquid-cooled 4-stroke 4-valve DOHC single cylinder
Engine displacement124.9 cc
No of valves per cylinder4
Bore and stroke57.3 mm / 2.26" x 48.4 mm / 1.91"
Compression ratio11.3:1
Max power output11.0 kW / 14.75 hp at 10,000 rpm
Max torque11.6 Nm / 8.56 lb-ft at 8,000 rpm
Oil capacity1.5 L / 0.4 gal
Noise level80.2 Lwot, 77.1 Lurban
CarburationPGM-FI electronic fuel injection
Fuel tank capacity10.1 L / 2.67 gal
Fuel consumption45.5 km/L / 107.0 mpg (WMTC Mode)
StarterElectric
Battery capacityYTZ6V 12V 5Ah MF
Acg output180W/5000rpm
Clutch typeWet, multiplate with coil springs
Transmission type6-speed
Final driveO-ring sealed chain
Frame typeInner pivot diamond frame
Dimensions2,025 mm / 79.72" x 820 mm / 32.28" x 1,055 mm / 41.54"
Wheelbase1,345 mm / 52.95"
Caster angle24.2°
Trail90.2 mm / 3.55"
Seat height790 mm / 31.1"
Ground clearance140 mm / 5.51"
Kerb weight117 kg / 258 lbs
Turning radius2.3 m
Suspension front41 mm (SFF-BP) USD forks
Suspension rearNon-adjustable single-damper
Rim size front17M/C x MT3.00
Rim size rear17M/C x MT4.00
Tyres front110/70R17M/C 54H
Tyres rear150/60R17M/C 66H
Abs system typeFront & rear independent ABS with IMU
Brakes front296 mm hubless floating disc, Radial-mount Nissin 4-piston caliper
Brakes rear220 mm single disc, single-piston caliper
Instruments5 in TFT colour meter
HeadlightLED
TaillightLED
