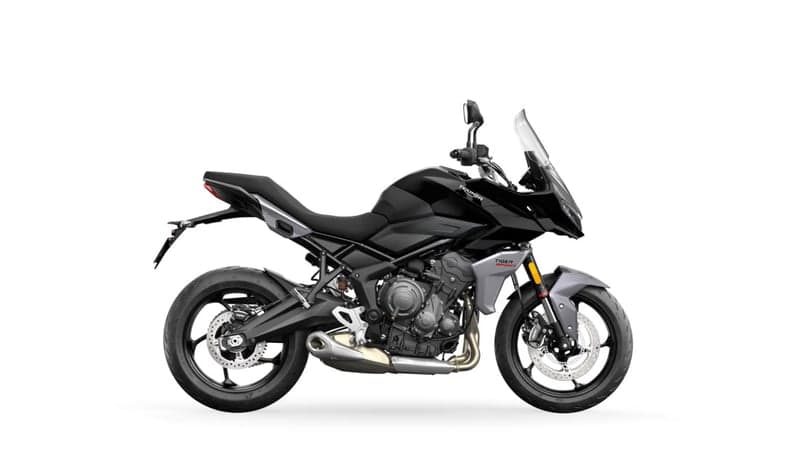

Triumph
Type | Liquid-cooled, 12 valve, DOHC, inline 3-cylinder, 240° firing order |
Capacity | 660 cc |
Bore | 74.04 mm / 2.91 in |
Stroke | 51.1 mm / 2.01 in |
Compression | 11.95:1 |
Max power ec | 81 PS / 81 hp / 59.6 kW @ 10,250 rpm |
Max torque ec | 47.2 lb-ft / 64 Nm @ 6,250 rpm |
System | Multipoint sequential electronic fuel injection with electronic throttle control |
Exhaust | Stainless steel 3 into 1 header system with low single sided stainless steel silencer |
Final drive | X-ring chain |
Clutch | Wet, multi-plate, slip |
Gearbox | 6-speed |
Frame | Tubular steel perimeter frame |
Swingarm | Twin-sided, fabricated steel |
Front wheel | Cast aluminium, 17 x 3.5 in |
Rear wheel | Cast aluminium, 17 x 5.5 in |
Front tire | 120/70 ZR 17 (58W) |
Rear tire | 180/55 ZR 17 (73W) |
Front suspension | Showa 41mm upside down separate function cartridge forks, 150 mm / 5.91 in wheel travel |
Rear suspension | Showa monoshock RSU, with remote hydraulic preload adjustment, 150 mm / 5.91 in wheel travel |
Front brakes | Nissin two-piston sliding calipers, twin 310 mm / 12.2 in discs, ABS |
Rear brakes | Nissin single-piston sliding caliper, single 255 mm / 10.04 in disc, ABS |
Instrument display and functions | Multi-function instruments with color TFT screen |
Width handlebars | 834 mm / 32.83 in |
Height without mirror | 1398 mm / 55.04 in high / 1315 mm / 51.77 in low screen position |
Seat height | 835 mm / 32.87 in |
Wheelbase | 1418 mm / 55.82 in |
Rake | 23.1° |
Trail | 97.1 mm / 3.82 in |
Tank capacity | 17.2 litres / 4.5 US gal |
Wet weight | 455 lb / 206.36 kg |
Fuel consumption | 52.2 mpg / 4.5 L / 100 km |
Co2 figures | 125 g/km EPA Procedure CO2 emissions |
Service interval | 10,000 miles / 16,000 km or 12 months, whichever comes first |
