Triumph
| Bore x stroke | 90.0 mm x 60.8 mm |
| CO2 (EU) | 127 g/km (EURO 5+) |
| Clutch | Wet, multi-plate, slip & assist |
| Compression ratio | 13.2:1 |
| Electronics | 6-axis IMU, Optimized Cornering ABS & Traction Control, Front Wheel Lift Control, Engine Braking Control, Brake Slide Assist, cruise control, 5 riding modes (Rain/Road/Sport/Track/Rider) |
| Engine | Liquid-cooled, 12-valve DOHC inline 3-cylinder |
| Ergonomics | Clip-ons 69 mm lower & 52 mm further forward vs RS; pegs 14.5 mm higher & 25.5 mm rearward |
| Exhaust | 3-into-1 stainless underslung primary silencer + side-mounted titanium Akrapovič silencer |
| Final drive | X-ring chain |
| Frame | Aluminium twin spar with bolt-on aluminium subframe |
| Front brake | Twin 320 mm floating discs, Brembo Stylema monobloc calipers, Brembo MCS radial master cylinder |
| Front suspension | Öhlins 43 mm NIX30 EC (SV) USD, 120 mm travel, SmartEC3 electronic damping |
| Fuel consumption (EU) | 5.5 L/100 km (51.4 mpg) |
| Fuel system | Multipoint sequential EFI with ride-by-wire |
| Fuel tank capacity | 15.5 L / 4.1 US gal |
| Height | 1059 mm |
| Instruments | 5" full-color TFT |
| Length | 2090 mm |
| Limited edition | 1,200 units worldwide |
| Paint/graphics | Triumph Performance Yellow & Granite with white RX graphics; carbon-fibre front mudguard and tank infills |
| Power | 183 PS / 180.5 hp (134.6 kW) @ 10,750 rpm |
| Rake | 23.9° |
| Rear brake | Single 220 mm disc, Brembo twin-piston caliper |
| Rear suspension | Öhlins TTX36 EC (SV) monoshock, 120 mm travel, SmartEC3 electronic damping |
| Seat height | 830 mm |
| Steering damper | Öhlins SD EC electronic |
| Swingarm | Single-sided aluminium |
| Torque | 128 Nm / 94.4 lb-ft @ 8,750 rpm |
| Trail | 104.7 mm |
| Transmission | 6-speed with Triumph Shift Assist (up/down) |
| Tyres | Pirelli Diablo Supercorsa SP V3 120/70ZR17 (front) & 190/55ZR17 (rear) |
| Wet weight | 199 kg / 438.7 lb |
| Wheelbase | 1445 mm |
| Wheels | Cast aluminium 17 x 3.50 in (front) / 17 x 6.00 in (rear) |
| Width | 825 mm |
KTM • 2024
KTM • 2026

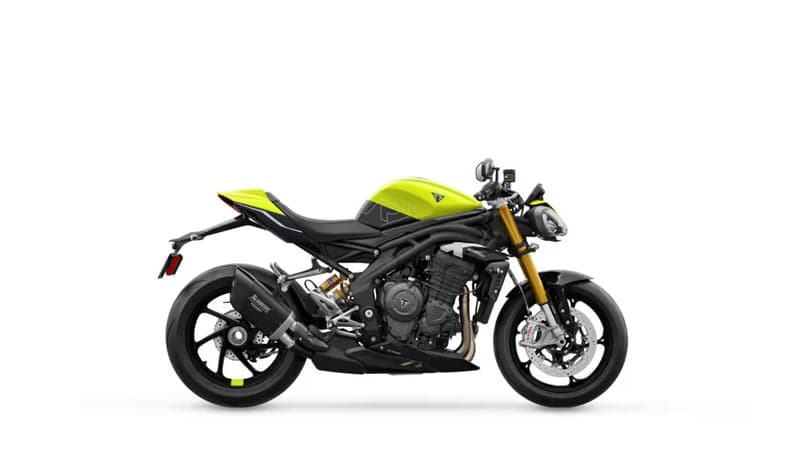

The Triumph Speed Triple 1200 RX (2026) is poised to expand the benchmark Speed Triple lineup with a sharper, track-leaning twist. On Torquepedia—your encyclopedia for motorcycles and their specs—you can follow official updates and instantly compare the RX against every major supernaked using advanced filters.
Note: Triumph has not yet published the full official spec sheet for the RX at the time of writing. Details below reflect platform expectations based on the current Speed Triple 1200 family and will be updated the moment specs are confirmed.
If Triumph follows prior “RX” logic seen elsewhere in the range, expect a limited or sharpened variant that blends the RS’s raw street focus with added exclusivity or track-forward touches—while keeping the RR’s fully faired, clip‑on ergonomics separate. The RX should preserve the Speed Triple DNA: compact mass centralization, aggressive geometry, and a charismatic triple soundtrack.
Use Torquepedia’s advanced filters to compare by:
Stay tuned—Torquepedia will publish the complete, verified 2026 Triumph Speed Triple 1200 RX spec sheet the moment it’s official. In the meantime, explore and compare every supernaked in seconds with our advanced filters to see exactly where the RX will land in the class.
